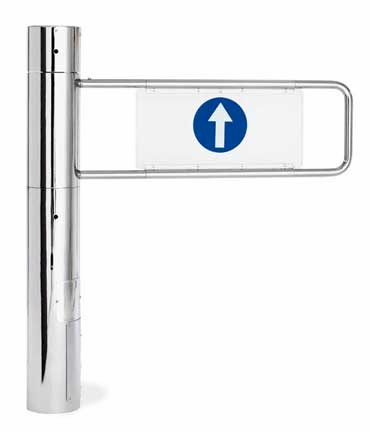

Rotogate standard
The Rotogate is an extremely robust, stable and functional automatic
gate. It can be fitted with a variety of accessories and control
functions.
It is the perfect gate for an entrance where rails and uprights are not
required. The Rotogate’s stable design and fixing method makes it the
perfect “stand-alone” gate without rails or posts. Naturally there is no
problem in configuring the Rotogate with all possible variants of lead
in and lead out rails.
|
|
|
TECHNICAL DETAILS:
| Standard Version |
Rotogate |
| Passage Function |
Standard and Welcome |
| Opening controls |
Push button; single or double photocell
(requires lead in rails to the gate); autosensor (radar);
overhead sensor; remote control |
| Opening time |
10 rpm, fully open gate in 1.5 sec |
| Break-out facility |
Adjustable break-out, 60-180 Nm with audible
alarm and adjustable volume |
| Safety |
Childsafe, Zero finger traps, emergency
break-out |
| Finish, post |
Chrome, powder coated, stainless steel |
| Top Casing |
Chrome, powder coated, plastic casing |
| Customer guide rails |
Bright chrome or powder coated |
| Gate design |
Chrome gate
Left or right hand function
90 or 180 degree operation |
| Gate arms |
Standard gate arm (500mm – 1200mm)
Full Depth arm available in bright chrome or stainless steel |
| Signage |
Various designs |
| Power Supply |
230V/50Hz (110V option) |
|
|
OPTIONS:
- Lead in or out customer guide rails
- Gates can be linked for simultaneous operation
- Customer counter (for use with photocell control)
- Remote control function
- Full depth gate arm
- Chrome or stainless steel finish
- Voice Box
- Partition walls
|
|
|
|
