Barrier Arm Optical Turnstiles

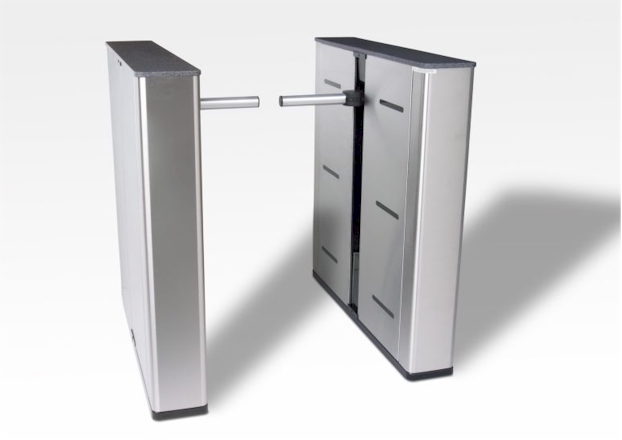

Barrier Arm optical turnstiles
Concept
Combining the best of optical turnstiles and physical barrier
technology, Fastlane plus is the very latest in high tech entrance
control systems. Fastlane plus uses state of the art optical technology
to monitor the passage of every individual entering and leaving a
facility, combined with fast-acting barrier arms to physically deter
unauthorised access.
Secure
The barrier arms of Fastlane plus have a closing time of 1/2 second.
This, combined with its safety beams, allows the system to close on
tailgaters as close together as 15 cms. Additionally, the system
features a fire alarm input that allows the barrier arms to be
automatically retracted in the event of an emergency.
flexible
Fastlane plus comes in AS or MA versions which can be operated in a
number of different modes (subject to version), including Normally
Closed, Normally Open, Optical, X-mode, or Lane Shut Mode. These modes
can be changed remotely via a switch to meet changing security,
aesthetic and throughput needs.
discreet
Fastlane plus offers the most discreet barrier solution available on the
market with pedestal dimensions of less than 1 metre by 16 cms. The
pedestals can also be custom designed to complement the most diverse
design environments, providing a welcoming and non-confrontational
entrance to staff and clients alike.
Using Fastlane plus ensures the ultimate combination of architectural
flexibility and security.
|
|
|
OPERATION:
- Optical turnstile with integrated barriers
- Physical and visual deterrent
- Deters unauthorised entry attempts
- Barrier Arms close on tailgaters as close together as 6 inches
- Fast throughput of 1 person per second
- Compact aesthetic design
- Compliant with most disabilities acts
|
|
KEY BENEFITS:
1. More Secure – unsurpassed tailgate detection and deterrence;
tailgaters are detected following as close as ¼" behind authorised users
and are stopped by a physical barrier if they are as close as 6" behind.
2-stage alarm response: early audible warning alarm followed by a
secondary output for a higher security response e.g. to trigger CCTV or
lock doors.
2. Fastest Throughput – means a greater return on investment. 1 person
per second often means fewer lanes are required, and less wasted time in
queues leads to greater user acceptance.
3. Unsurpassed Accuracy – virtually eliminates false alarms. The
intelligence of Fastlane plus enables the system to differentiate
between body mass and small objects such as umbrellas etc. This
increases user and guard acceptance, avoiding “tune-out” from excessive
false alarms.
4. Most Aesthetic and Streamlined Design – Fastlane plus is an
architect-inspired solution; with 38" by 6.4" enclosures, it takes up
less space than other systems. The units for wider disabled lanes are
the same width as all other pedestals. IDL offers a full design service
for custom enclosures, as well as alternative colours and materials.
5. Easiest Installation and Ongoing Maintenance – CAT 5 interconnections
provide plug ‘n’ play simplicity. Industry proven technology and onboard
diagnostics to ensure maximum system up-time.
6. Safety – The Fastlane plus R400 features multiple safety beams to
stop the arms from moving in the event that any of the beams are broken.
The unique self-resetting ‘breakaway’ arms and Fire Alarm input allow
for safe, unimpeded emergency evacuation. |
|
|
|
